In industries that operate under high-pressure conditions, such as power generation, oil and gas, and chemical processing, safety is of utmost importance. High-pressure safety valves are critical components designed to protect systems from the dangers of overpressure, ensuring that equipment and personnel remain safe during operation. These valves are engineered to open automatically when system pressure exceeds a predefined limit, relieving pressure and preventing catastrophic failure. This article provides an in-depth look at high-pressure safety valves, their design, applications, and the contribution of manufacturers like ASME VALVE LCC in producing high-quality solutions for these critical systems.

What Are High-Pressure Safety Valves?

High-pressure safety valves are specialized devices used to protect equipment and systems from the potentially hazardous consequences of excessive pressure. They are designed to function in systems where the pressure is significantly higher than standard levels, often exceeding 1500 psi (pounds per square inch). These valves are used in applications where high-pressure steam, gas, or liquids are involved, and their failure to function correctly could result in equipment damage, explosions, or loss of life.

A high-pressure safety valve typically operates by maintaining a closed position during normal operation. When the pressure in the system exceeds the valve's set point, the valve opens to release the excess pressure. Once the pressure drops back to a safe level, the valve closes again. The design of these valves ensures quick and precise operation, which is crucial for preventing damage to vital components like boilers, turbines, and pipelines.

Types of High-Pressure Safety Valves

High-pressure safety valves come in different designs, each tailored to meet specific system requirements. Below are the common types used in high-pressure applications:

Spring-Loaded Safety Valves:
Spring-loaded safety valves are among the most common types used in high-pressure systems. These valves utilize a spring mechanism that holds the valve disc tightly against the valve seat under normal pressure conditions. When the system pressure exceeds the preset value, the spring force is overcome, and the valve opens to release the pressure. Once the pressure is relieved, the spring closes the valve, restoring the system to a safe operating condition.

Pilot-Operated Safety Valves:
Pilot-operated safety valves are used when greater control and higher flow rates are required. These valves feature a pilot valve that senses system pressure and, when it reaches the set point, opens the main valve to release excess pressure. The pilot-operated design allows for more precise control of the pressure relief process, making these valves ideal for systems with fluctuating pressure conditions or where a higher flow capacity is needed.

Bellows-Sealed Safety Valves:
In high-pressure systems where backpressure is a concern, bellows-sealed safety valves are often used. These valves incorporate a bellows mechanism that balances the forces on the valve disc, preventing issues caused by fluctuating or high backpressure. The bellows provide additional sealing and protection, ensuring smooth operation and consistent performance, even under challenging conditions.

Direct-Operated Safety Valves:
Direct-operated safety valves are commonly found in high-pressure systems, particularly in applications that demand fast response times. In these valves, system pressure directly acts on the valve disc to open or close it, without the need for external pilot systems. Direct-operated safety valves are reliable and quick-acting, making them suitable for high-pressure steam and gas applications.

Design Considerations for High-Pressure Safety Valves

The design of high-pressure safety valves requires careful attention to various factors to ensure reliable and safe operation. Some of the key considerations include:

Pressure Rating and Set Pressure:
One of the most critical aspects of a high-pressure safety valve is the pressure setting, which determines when the valve will open. The valve must be rated for the system's maximum operating pressure, with a set pressure that ensures it opens before the system reaches dangerous levels. Accurate calibration is essential to prevent premature or delayed valve activation, both of which could lead to system damage.

Material Selection:
High-pressure systems often operate at elevated temperatures and in aggressive environments, such as corrosive steam or gases. Therefore, the materials used for constructing high-pressure safety valves must be durable, corrosion-resistant, and capable of withstanding thermal stresses. Stainless steel, alloy steels, and specially treated metals are commonly used to ensure long-term reliability and performance.

Flow Capacity:
High-pressure safety valves must be capable of handling large volumes of fluid or gas in a short period. The flow capacity of the valve should be sized appropriately to ensure that pressure is relieved rapidly enough to prevent system damage. Sizing the valve correctly is essential to avoid issues like incomplete pressure relief, which could still result in dangerous overpressure conditions.

Response Time:
The valve's response time is another critical factor. High-pressure safety valves must open quickly to release excess pressure before the system suffers irreparable damage. The faster the valve reacts, the more effective it will be in protecting the system. This requires precise engineering and often sophisticated valve mechanisms to ensure the valve opens instantly when needed.

Backpressure Tolerance:
High-pressure systems may experience varying levels of backpressure due to system dynamics, such as pump operation or downstream restrictions. The valve must be designed to operate reliably under varying backpressure conditions. Valves with built-in backpressure compensation, such as bellows-sealed valves, are commonly used to address this challenge.

Reliability and Maintenance:
Given the critical nature of high-pressure safety valves, they must be designed for long-term reliability. Regular inspection and maintenance are necessary to ensure that the valve continues to operate effectively over time. Factors like spring fatigue, corrosion, and wear on the valve seat can affect performance, so proactive maintenance is essential.

Applications of High-Pressure Safety Valves

High-pressure safety valves are used across a wide range of industries where systems operate at high pressures. Some of the most common applications include:

Power Generation:
In power plants, high-pressure steam is used to drive turbines for electricity generation. High-pressure safety valves are crucial for protecting steam boilers and turbine systems from overpressure, which could lead to equipment damage or catastrophic failure. These valves are designed to handle the extreme conditions typically found in thermal and nuclear power plants.

Oil and Gas Industry:

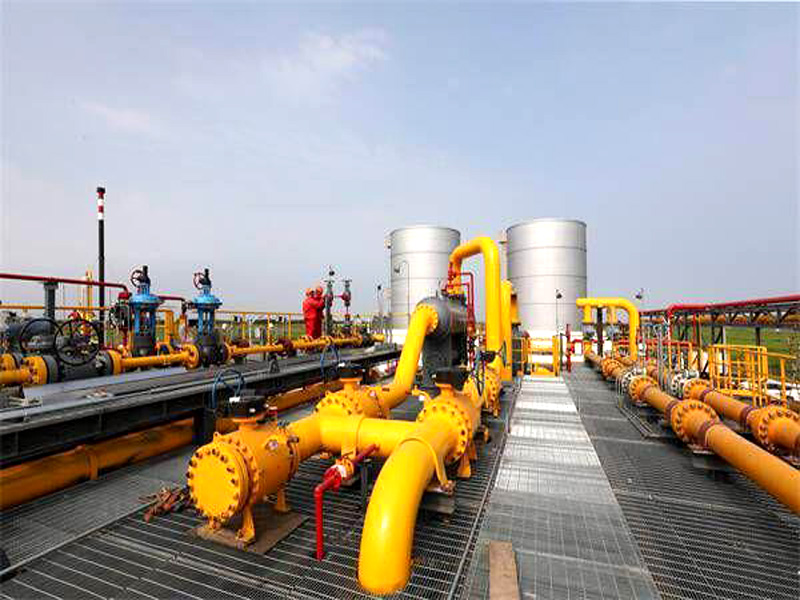

The oil and gas industry relies on high-pressure pipelines, pressure vessels, and drilling equipment. High-pressure safety valves are installed to protect these systems from pressure surges and overpressure events. The valves help maintain safe operating conditions in refineries, pipelines, and offshore platforms.

Chemical and Petrochemical Plants:
Chemical processing often involves the use of high-pressure reactors, boilers, and heat exchangers. High-pressure safety valves are essential for preventing accidents caused by overpressure in these systems. They help ensure that dangerous chemical reactions or vaporization processes do not escalate into hazardous situations.

Water Treatment Plants:
In water treatment systems, high-pressure pumps and filtration units are used to move water through pipelines or membranes. High-pressure safety valves ensure that these systems operate safely by releasing excess pressure when needed, preventing equipment damage and system failures.

Manufacturing and Industrial Applications:
Various manufacturing processes, including metalworking, automotive, and textile industries, require high-pressure systems for steam generation, hydraulic systems, and fluid transfer. Safety valves are installed to prevent overpressure and ensure safe and efficient operations.

ASME VALVE LCC: Leading Manufacturer of High-Pressure Safety Valves

ASME VALVE LCC, based in China, is a leading manufacturer of high-pressure safety valves that meet international standards for safety and performance. Their valves are engineered to handle the extreme pressures and temperatures found in power generation, chemical processing, and other high-pressure applications. ASME VALVE LCC provides reliable and durable valve solutions designed to protect critical systems from overpressure and ensure safe, efficient operations.

ASME VALVE LCC's expertise in high-pressure valve design allows them to deliver products that meet the specific needs of industries that operate under extreme conditions. By using advanced materials and precise manufacturing techniques, ASME VALVE LCC ensures that its high-pressure safety valves provide optimal protection and performance.

Conclusion

High-pressure safety valves are essential for ensuring the safety and reliability of systems operating under extreme pressure conditions. These valves are critical in industries like power generation, oil and gas, and chemical processing, where the consequences of overpressure can be catastrophic. The design of high-pressure safety valves must account for factors such as pressure rating, material selection, flow capacity, and response time to ensure optimal performance. Manufacturers like ASME VALVE LCC play a crucial role in providing high-quality, durable safety valves that help protect systems and prevent costly failures.
